Description
Product Parameters
| Item / Parameter | Specification / Feature |
| Product Name | Manual 5-Function Nursing Bed |
| Overall Dimensions | 1907*895*493mm |
| Safe Working Load (SWL) | 250kg |
| Backrest Adjustment Angle | 0°to85° (15°) |
| Leg Rest Adjustment Angle | 0°to 35° (士5°) |
| Height Adjustment Range | 450 mm to 720 mm |
| Tilt Angles (Trendelenburg / Reverse) | 0°to12° |
| Main Material Structure | Cold-rolled reinforced steel frame with powder coating |
| Head & Foot Board | Detachable high-grade ABS engineering plastic |
| Side Rails | Foldable aluminum alloy / ABS collapsible guardrails |
| Casters / Wheels | 5-inch (125 mm) silent universal casters with central brake system |
| Crank System | Collapsible & hidden stainless steel/ABS crank handles with limit protection |
| Certifications | CE, ISO 13485, ISO 9001 Compliant |
Features & Functions
5-Way Ergonomic Position Adjustment
-

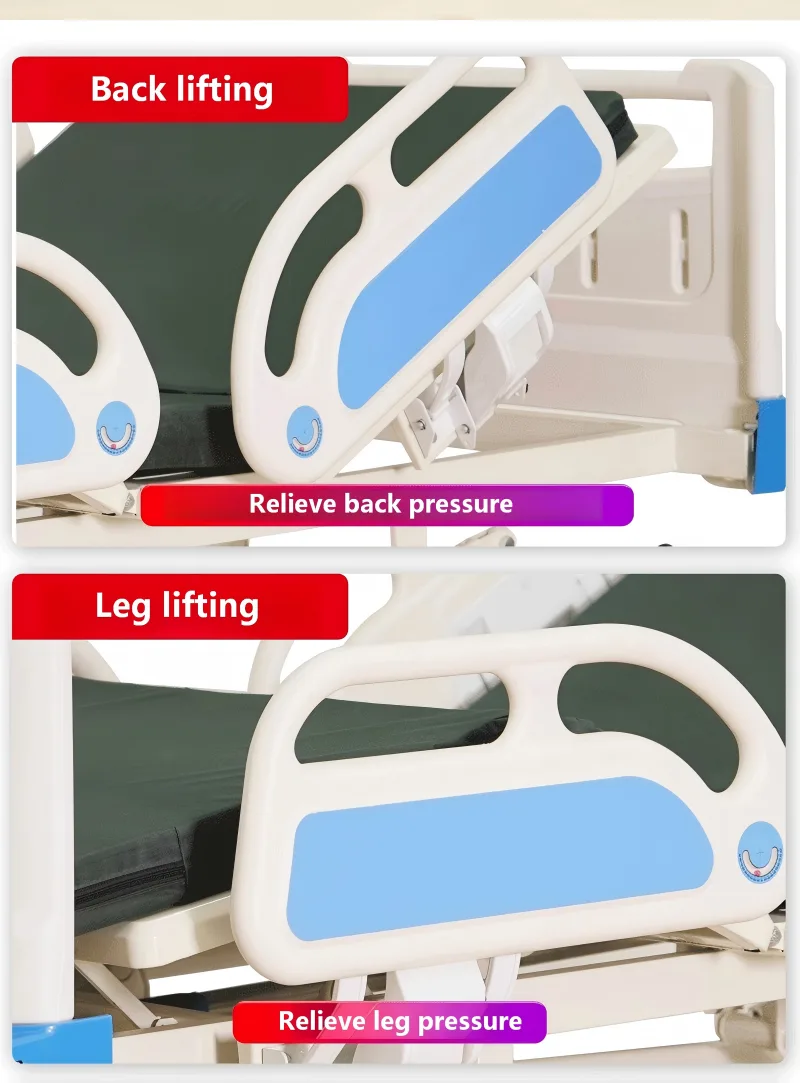

Back & Leg Elevation: Relieves pressure points, assists in pulmonary ventilation, and minimizes the risk of bedsores during long-term confinement.
-

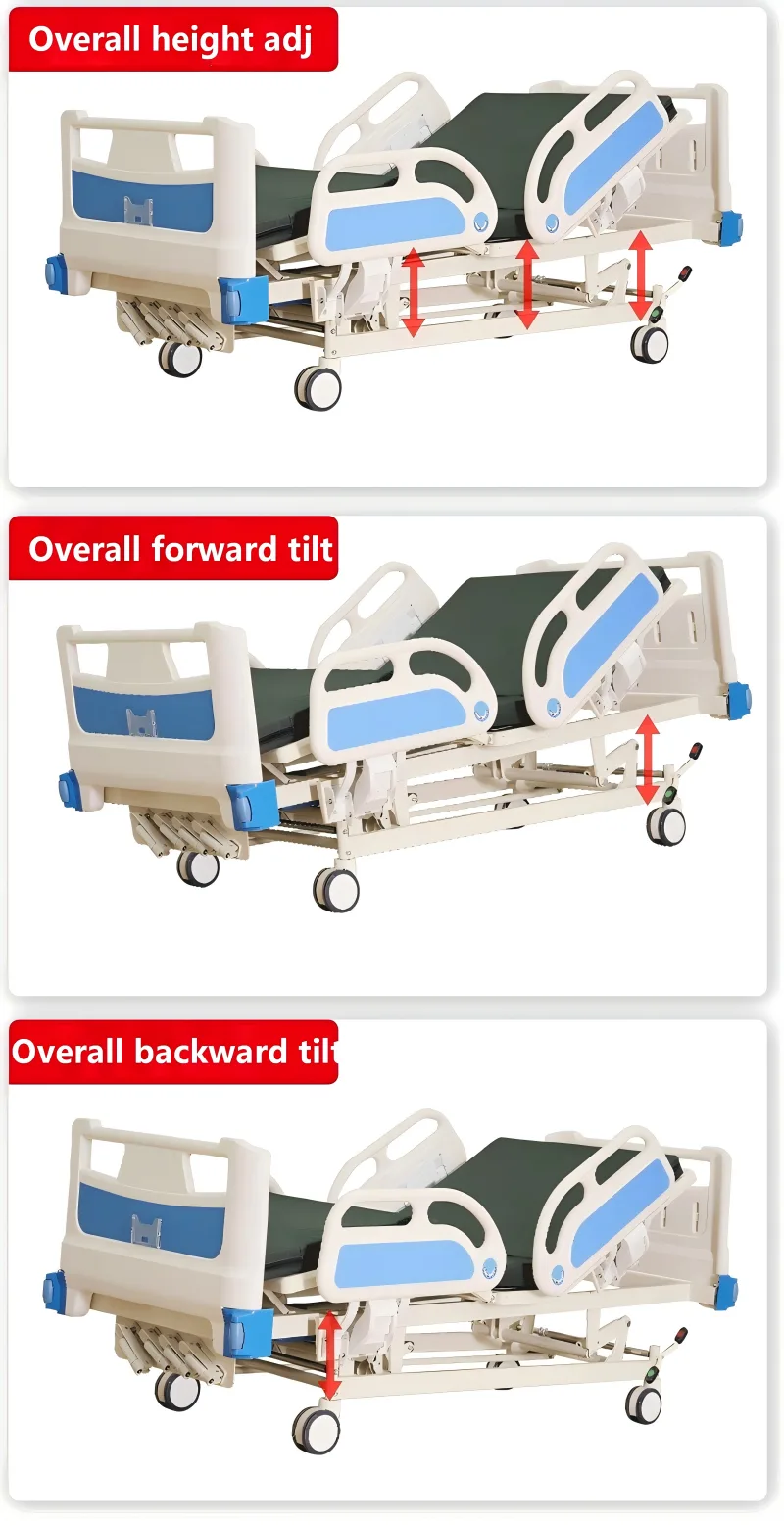

Full Height Adjustment: Allows caregivers to set the optimal working height, reducing physical strain during daily transfers and nursing routines.
-
Trendelenburg & Reverse Trendelenburg Tilt: Facilitates specialized clinical procedures, postural drainage, and improved cardiovascular circulation.
Enhanced Patient Safety & Structural Integrity
-
Heavy-Duty Steel Construction: Reinforced cold-rolled steel base with electro-static powder coating provides long-term anti-rust durability and structural stability.
-
Collapsible Guardrails: Simple push-button folding mechanisms protect patients from accidental falls while ensuring easy access for transfers.
Space-Saving & Caregiver-Friendly Operation
-

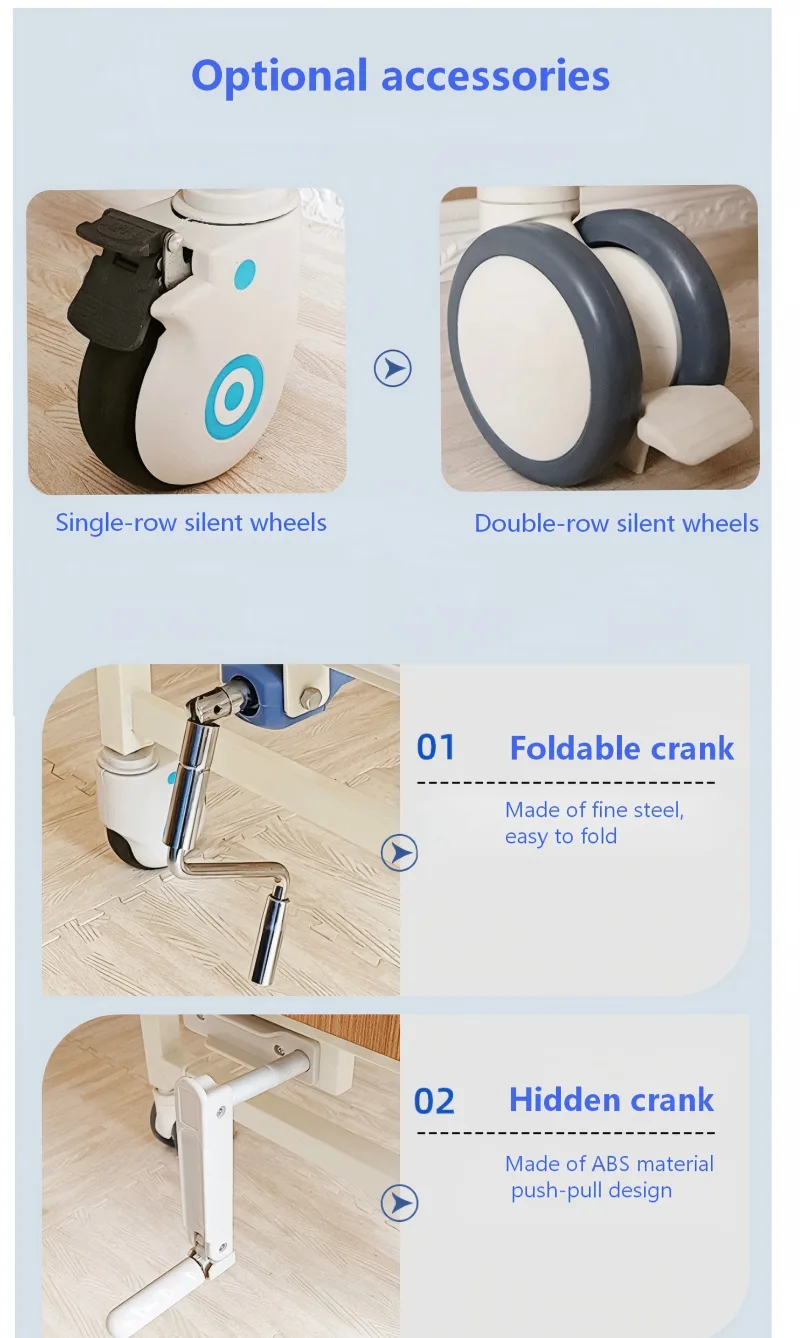

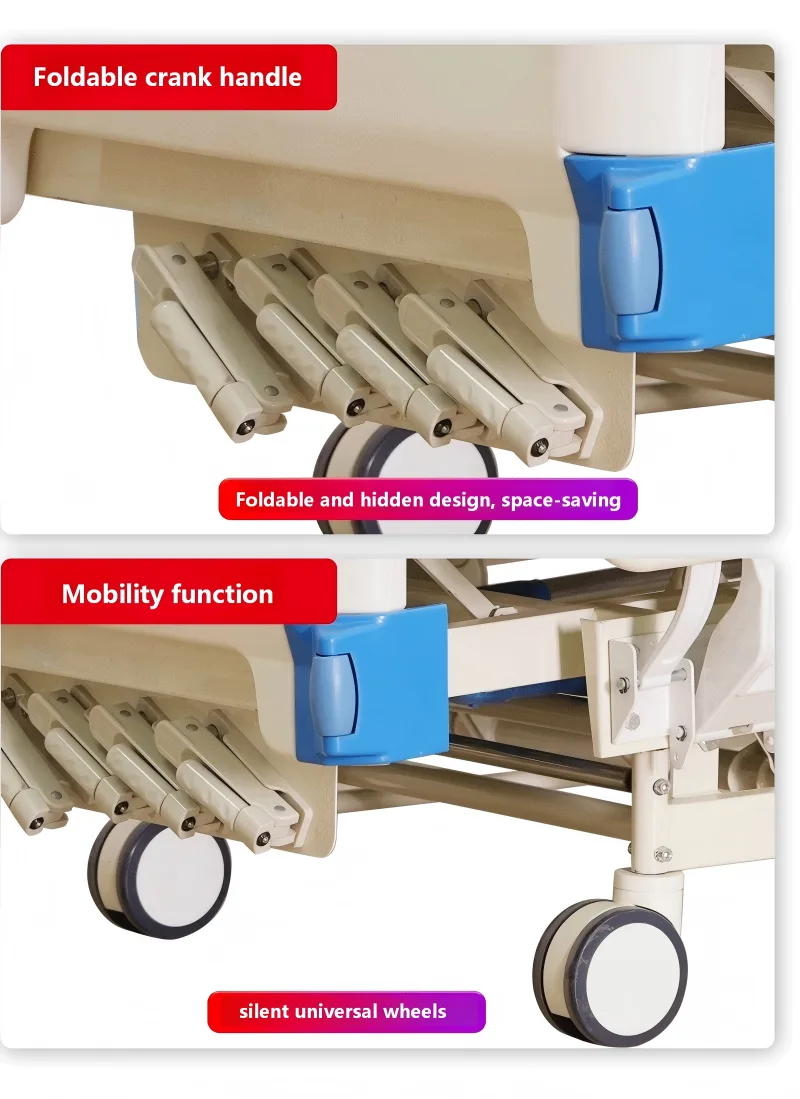

Hidden Crank System: Heavy-duty cranks tuck neatly away under the bed frame when not in use, preventing tripping hazards and optimizing space in tight rooms.
-
Silent & Smooth Mobility: High-grade universal casters allow whisper-quiet relocation with optional single/double wheel structures and central braking options.
